Ever wondered if that new Telecaster bridge will actually fit your guitar? You're not alone. Here at MBit Guitars, we're diving deep into the often-confusing world of bridge compatibility to empower your next upgrade.
First off, let's shatter a common myth: "standard" Telecaster bridge measurements are about as common as a unicorn playing a shred solo. These bridges are incredibly popular, leading to a vast array of variations. Guitar brand X might source their parts from one factory today and another tomorrow, and just like that, the measurements shift. So, let's ditch the idea of a universal "standard" right now.
One of the few measurements you can count on for some consistency is the string spacing. You'll typically find Modern spacing at 52.5mm or Vintage at 54mm, measured from the center of the 1st to the 6th string. While 56mm options exist, they're quite rare.
Now, for the big one: be prepared for modifications, especially when it comes to screw hole alignment. And before you gasp, "But it'll ruin the tone!" or "It'll devalue my axe!", let's get real. Upgrading to a higher-quality component almost always enhances your instrument. You're gaining, not losing, by investing in better parts.
Here at MBit Guitars, while we offer an incredible range of bridges, we understand that sometimes a truly custom solution is needed. If you're considering a bespoke bridge, it's crucial to understand what's technically feasible and financially viable.
Let's break down the common Telecaster bridge types and what's possible when going custom:
Modern Bridges
The hallmark of a Modern bridge is its rectangular saddles and a 52.5mm string spacing. A key characteristic is that the strings must pass through the guitar body and are secured on the back of the instrument. You can't top-load strings directly into these bridges.
- What can be customized: The bridge plate's width, length, and screw hole alignment to match your existing setup.
- What generally can't be customized: Side walls on the base plate or alternative string spacing.
Vintage Bridges
These are your classic Tele bridges, featuring either 3 or 6 round saddles with a 54mm string spacing. The beauty of Vintage bridges is their versatility: strings can pass through the body or be top-loaded directly into the bridge plate.
- What can be customized: Similar to modern bridges, the base plate's width, length, and screw hole adjustments.
- What generally can't be customized: Side walls on the base plate or different string spacing.
Hybrid Bridges
Hybrid bridges attempt to combine the Vintage 54mm string spacing with Modern-style saddles. While this sounds like a clever compromise, it's often where things go sideways. Many hybrid designs suffer from significant flaws, such as incorrect string-through-body hole positioning or issues with top-loading strings into the bridge. These design flaws frequently lead to saddle instability, wreaking havoc on your intonation and tuning stability.
Our partner, Ramme Custom Hardware, steers clear of making Hybrid bridges. The inherent design challenges often lead to performance issues we'd rather you avoid.
It's crucial to understand that these three bridge models are generally not interchangeable without significant work. Always, always, always measure and evaluate your existing bridge before purchasing a new one.

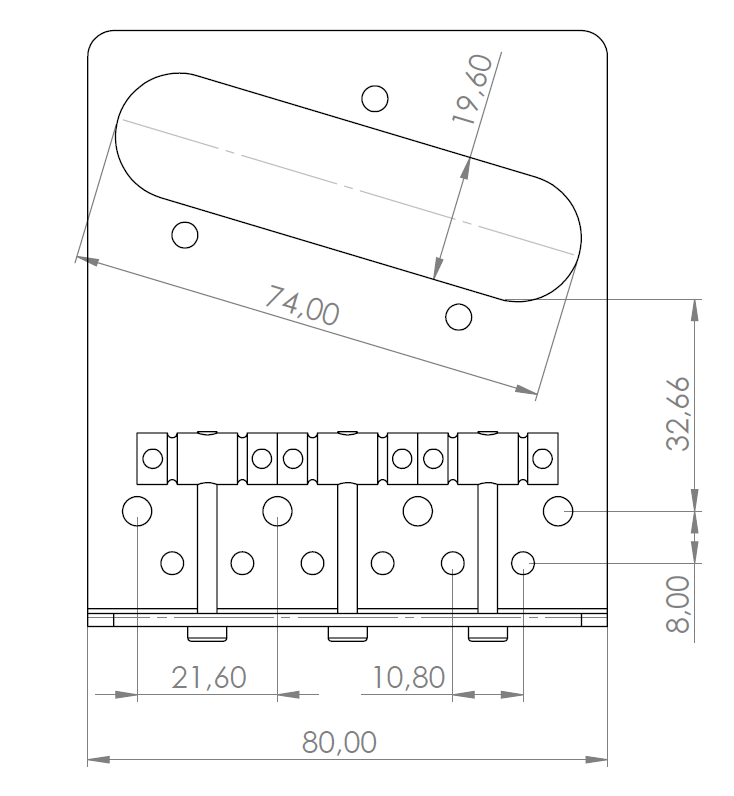

The Measurements That Matter
Forget just the overall width or length of the bridge. When assessing compatibility, these are the critical measurements:
Primary (Non-negotiable for installation):
- Bridge Model (Modern, Vintage, or Hybrid)
- String Spacing
- Distance Between String Pass-Through and Pickup
Secondary (Adaptable with minor modifications):
- Distance Between String Pass-Through and Mounting Screws
- Distance Between Mounting Screws
Ignoring those primary measurements means your new bridge simply won't fit. The secondary measurements, however, are often manageable with slight adjustments to your guitar's screw holes.
For ultimate peace of mind, we always recommend consulting a qualified luthier/guitar tech. And of course, compare your existing bridge's measurements with the detailed specifications and technical drawings available for all the bridges on our website.
Got questions? Don't hesitate to reach out to our support team. We're here to help you dial in your tone!
Ready to find the perfect upgrade for your axe? Explore our full selection of T-Style bridges right here at MBit Guitars and take the first step towards your ultimate tone!
